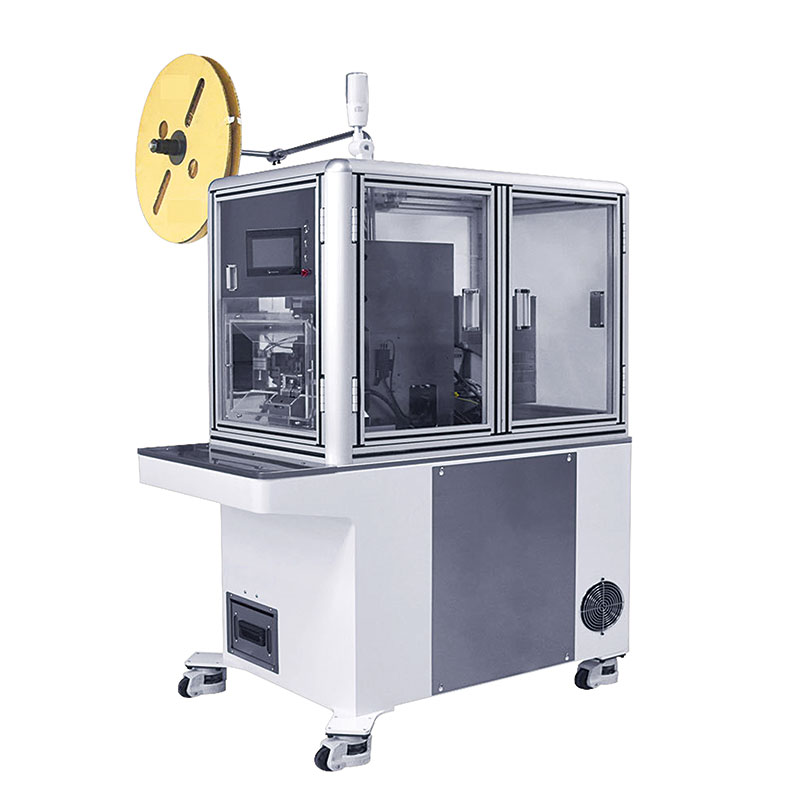

TS-W01 wire connector seals loading wire stripping and crimping machine

$ 97.09

Categories: , Flerbar Pods

Description TS-W01 is a semi-automatic machine, it realizes the three processes of wire seal loading, wire stripping twisting, and terminal crimping at the same time. The biggest highlight of this machine is that it can custom two-wire stripping and two wires seal load together. This machine adopts servo drive and guide rail screw positioning. Features 1. The stripping length can be adjusted via data sets, and the wire seal insertion depth is adjusted according to the data of the glue position between the stripping port and the wire seal. 2. The crimping depth can be adjusted according to the position of the top wire. 4. The stripping slide table is driven by a screw rod, stripping mechanism is driven by a motor plus screw to ensure accurate stripping length. 5. The waterproof wire seal feeding structure is simple and easy to replace, which meets the requirements of customers with many products and varieties. 6. The machine is easy to operate, stable in quality, and most work is concentrated in one workstation.
