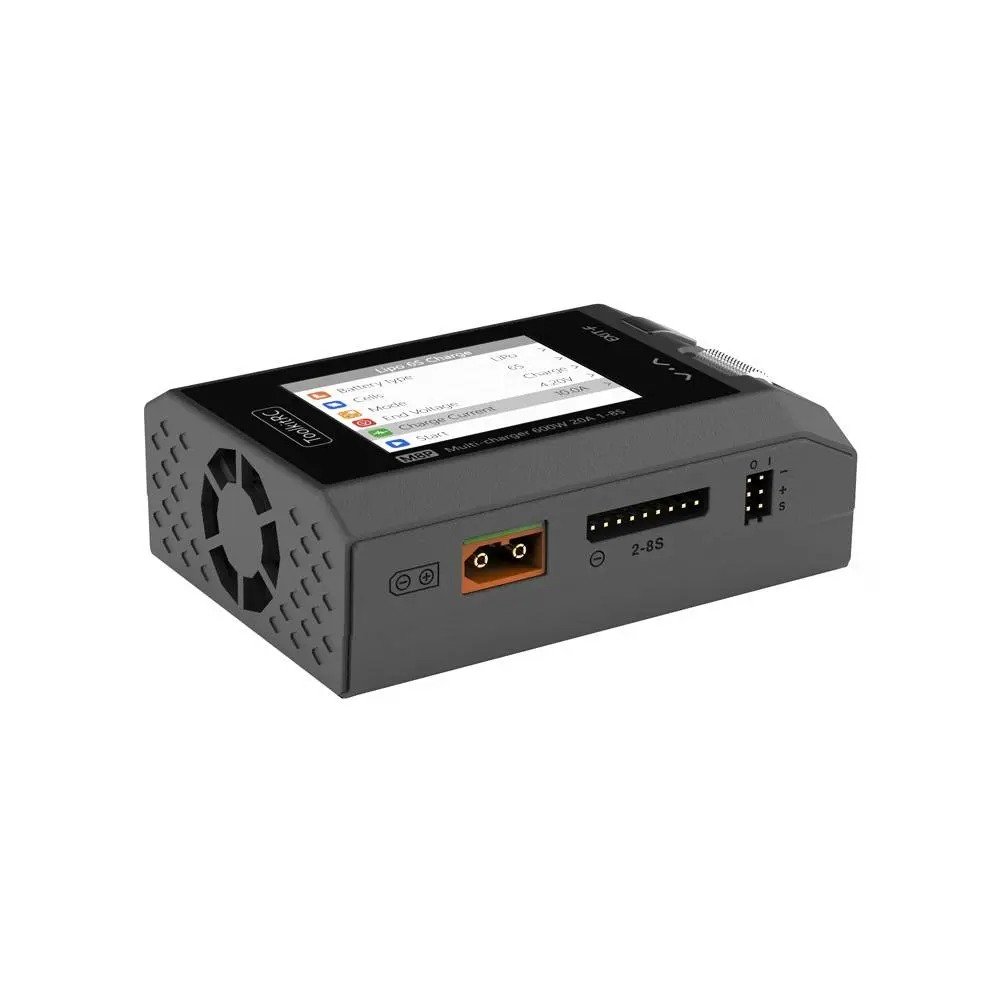

ToolKitRC M8P 1-8S 600W 20A DC Charger – XT60
$ 56.39
- Description The ToolkitRC M8P Charger is a reliable and compact charging solution crafted for FPV drone and cinematography applications. Equipped with a vibrant touchscreen interface, it provides intuitive control over charging parameters, supporting a range of XT60 battery types for versatility. With its portable design, the M8P ensures convenient charging on the field, making it an essential tool for drone enthusiasts and cinematographers alike. Features 600W DC Charger 1-8S Compatibility XT60 Connector Specifications Product size 100x71x34mm Product weight 200g CHARGING Input 7-35V: @MAX25A Battery Type: LiPo LiHV LiFe Lion LTO @ 1-8S NiMh @1-20S Pb @1-10S Charging Power: 0.1-20A@600W Discharging Power: 0.1-20A @ 600W Recycle External Discharging Power: 0.1-3A @ 20W Normal mode Balance current: [email protected] USB: 5.0V @ 2.1A upgrade MEASURING PWM: 880us-2200us @20-400Hz PPM: 880us-2200us*8Ch @20-50hz SBUS: 880us-2200us*16ch @20-100Hz Voltage: 1.0V-5.0V @1-8S IR: 1-99mR @1-8S ESC: 1-20A@1-35V MAX600W OUTPUT PWM: 500us-2500us @20-1000Hz PPM: 880us-2200us*8ch @50hz SBUS: 880us-2200us*16ch @74Hz Power: 1-20A @ 1-35V Mode: CC CV LCD Display: 2.4 IPS RGB 320×240 pixel Manual: M8P Manual V1.0
