LoRa SX1278 Module, 20dBm, 410-441MHz, Ebyte E32-433T20D, UART, SMA
$ 90.51

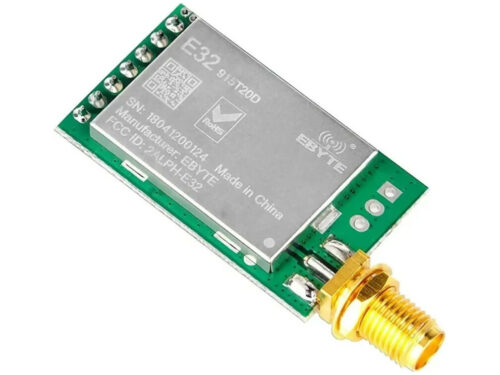

- The E32-433T20D is a 100mW high quality LoRa wireless module from EBYTE. Please note pictures are for the E32-915T20D, the E32-433T20D looks identical. It has a UART interface. It operates at 410~441MHz, and integrates an original imported SX1278 from SEMTECH. The module adopts LoRa spread-spectrum technology, which means it can communicate via long distances. The SX1278 chip can NOT be accessed via the chips SPI port. This module has a built in controller taking care of all the complex SX1278 setup and interfacing, allowing communication via a simple UART(at 3.3V TTL signal levels). It does NOT include an antenna. Search our store for available 433kHz antennas with a SMA male connector. Or click here. These modules are designed and manufactured with quality in mind. High quality capacitors and German Wurth wire wound inductors are used. A temperature compensated crystal oscillator is used for timing, which is critical for low error long distance LoRa communication. To view the PDF Datasheet, click here.see this page: 99tech.com.au/m/lora-e32-433t20d_manual.pdf For additional information, see the manufacturer's product page.product page:www.cdebyte.com/products/E32-900T20D Features IC: SX1278 Frequency : 410~441MHz Interface: UART (Baud rate: 1200~115200, default: 9600) Transmitting Power : 10~20dBm (Default: 20dBm（About 100mW) Air Data Rate: 0.3k~19.2kbps (Default: 2.4kbps) Size: 21 * 36 mm (Without SMA) Antenna Type: SMA Specs and Docs Example code can be found by googling "E32-433T20D" Code and examples to use this module with Arduino, esp32 or esp8266Code and examples to use this module with Arduino, esp32 or esp8266:github.com/xreef/LoRa_E32_Series_Library Tutorial for Code and examples given above(from xreef - mischianti)Tutorial for Code and examples given above(from xreef - mischianti):mischianti.org/lora-e32-device-for-arduino-esp32-or-esp8266-specs-and-basic-usage-part-1/ More Arduino examplesMore Arduino examples:osoyoo.com/2018/07/26/osoyoo-lora-tutorial-how-to-use-the-uart-lora-module-with-arduino SX1262 and SX1278, SX1276 ComparisonSX1262 and SX1278, SX1276 Comparison:https:/ebyte-sx12-comparison Using LoRa with the EByte E220, E22 and E32 seriesUsing LoRa with the EByte E220, E22 and E32 series:wolles-elektronikkiste.de/en/using-lora-with-the-ebyte-e220-e22-and-e32-series Package Includes 1 x Wireless Module [mx_insert-post-ebay slug="ebay-t-default"] SKU: LOR1-433 Categories: LoRa Modules, Wireless Modules Tags: lora, sx1278, wireless
