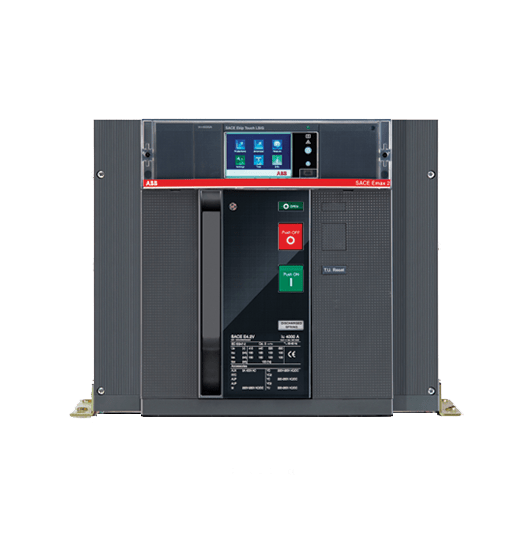

ABB Air Circuit Breaker (ACB)
$ 99.36
- Description ABB Air Circuit Breaker (ACB) Current Type: AC Electrical Durability: Ue =< 440 V 15000 cycle Ue = 500 … 690 V 15000 cycle 30 cycles per hour Mechanical Durability: 25000 cycle 60 cycles per hour Number of Poles: 3 Product Main Type: SACE Emax 2 Product Name: Air Circuit Breaker Product Type: Air Circuit Breaker Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics): 100 % Rated Current (In): 800 A~6300A Rated Voltage (Ur): 690 V Rated Impulse Withstand Voltage (Uimp): acc. to IEC 60947-2 12 kV Rated Insulation Voltage (Ui): AC 1000 V Rated Operational Voltage: 690 V AC Rated Service Short-Circuit Breaking Capacity (Ics): (220 V AC) 66 kA (230 V AC) 66 kA (380 V AC) 66 kA (400 V AC) 66 kA (415 V AC) 66 kA (440 V AC) 66 kA (500 V AC) 66 kA (660 V AC) 66 kA (690 V AC) 66 kA Rated Short-time Withstand Current Low Voltage (Icw): for 1 s 66 kA for 3 s 50 kA Rated Ultimate Short-Circuit Breaking Capacity (Icu): (400 V AC) 66 kA (415 V AC) 66 kA (440 V AC) 66 kA (500 V AC) 66 kA (525 V AC) 66 kA (690 V AC) 66 kA Rated Uninterrupted Current (Iu): 800 A~6300A Recommended Screw Driver: Main Circuit M12 Release: Ekip Dip LI Release Type: EL Short-Circuit Performance Level: N Standards: IEC Sub-type: E2.2 Terminal Connection Type: Rear flat Horizontal Terminal Type: Bolt Tightening Torque: 70 N·m Version: F
