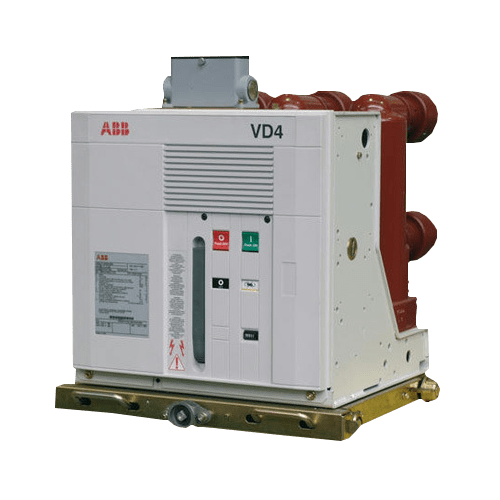

ABB VD4 Series VCB
$ 93.20
- Description ABB VD4 Series VCB: VD4 Medium voltage vacuum circuit-breakers 12…24 kV – 630…3150 A – 16…40 kA The new VD4 is a synthesis of the renowned technology in designing and constructing vacuum interrupters embedded in resin poles and of excellence in design, engineering, and production of circuit-breakers. The VD4 medium voltage circuit breakers use vacuum interrupters embedded in resin poles. Embedding the interrupter in resin makes the circuit-breaker poles particularly sturdy and protects the interrupter against shocks, accumulation of dust, and humidity. The vacuum interrupter houses the contacts and makes up the interrupting chamber. Vacuum interruption technique • Vacuum contacts protected against oxidation and contamination • Vacuum interrupter embedded in the resin poles • Interrupter protected against shocks, dust, and humidity • Operation under different climatic conditions • Limited switching energy • Stored energy operating mechanism with anti-pumping device supplied as standard • Simple customization with a complete range of accessories • Fixed and withdrawable version • Compact dimensions • Sealed-for-life poles • Sturdiness and reliability • Limited maintenance • Circuit-breaker racking in and racking out with the door closed • Incorrect and hazardous operations are prevented thanks to special locks in the operating mechanism and the truck • High environmental compatibility ABB VD4 Series VCB Features: • Highly reliable operating mechanisms thanks to a low number of components that are manufactured using production systems for large quantities • Extremely limited and simple maintenance • The accessories are common to the whole range and are identical for either a.c. or d.c. applications • The electrical accessories can be installed or replaced easily and rapidly thanks to the cabling which is already prepared with its plug-socket connectors • Mechanical anti-pumping device is supplied as standard • Built-in closing spring charging lever • Key lock with circuit breaker open • Protective covering over the opening and closing pushbuttons to be operated using a special tool • Padlock device on the operating pushbuttons ABB Air Circuit Breaker – VD4 Series Price list: Air Circuit Breaker – VD4 (Italy Make) Sl No. Description Model Current Rating Type MRP 2023 1 630A VCB VD4 12.06.20 P150 20kA Fixed 743,000 2 630A VCB VD4 12.06.25 P150 25kA Fixed 772,500 3 630A VCB VD4 12.06.32 P150 32kA Fixed 811,000 4 1250A VCB VD4 12.12.25 P150 25kA Fixed 804,000 5 1250A VCB VD4 12.12.32 P150 32kA Fixed 845,000 6 630A VCB VD4/P 12.06.20 P150 20kA Withdrawable 1,000,500 7 630A VCB VD4/P 12.06.25 P150 25kA Withdrawable 10,41,000 8 630A VCB VD4/P 12.06.32 P150 32kA Withdrawable 10,93,000 9 1250A VCB VD4/P 12.12.25 P150 25kA Withdrawable 10,82,500 10 1250A VCB VD4/P 12.12.32 P150 32kA Withdrawable 11,35,700 11 1600A VCB VD4/P 12.16.20 P250 20kA Withdrawable 13,53,000 12 1600A VCB VD4/P 12.16.25 P250 25kA Withdrawable 14,06,500 13 2000A VCB VD4/P 12.20.20 P250 20kA Withdrawable 17,31,000 14 2000A VCB VD4/P 12.20.25 P250 25kA Withdrawable 18,04,000 15 2500A VCB VD4/P 12.25.20 P275 20kA Withdrawable 24,60,000 16 2500A VCB VD4/P 12.25.25 P275 25kA Withdrawable 25,00,000 17 Female Socket 58Pole Connector 32,500 VD4 Series VCB: ABB VD4 Series VCB Medium voltage vacuum circuit breakers VD4 circuit breakers Vacuum interrupter technology Resin pole circuit-breakers Vacuum interruption technique Reliable circuit-breaker poles Limited maintenance VD4 breakers Customizable circuit-breaker accessories Sealed-for-life poles reliability Environmentally compatible VCB Highly reliable operating mechanisms Simple maintenance VD4 features Easy installation of electrical accessories Mechanical anti-pumping device Key lock safety mechanism Protective covering pushbuttons Padlock device for security
