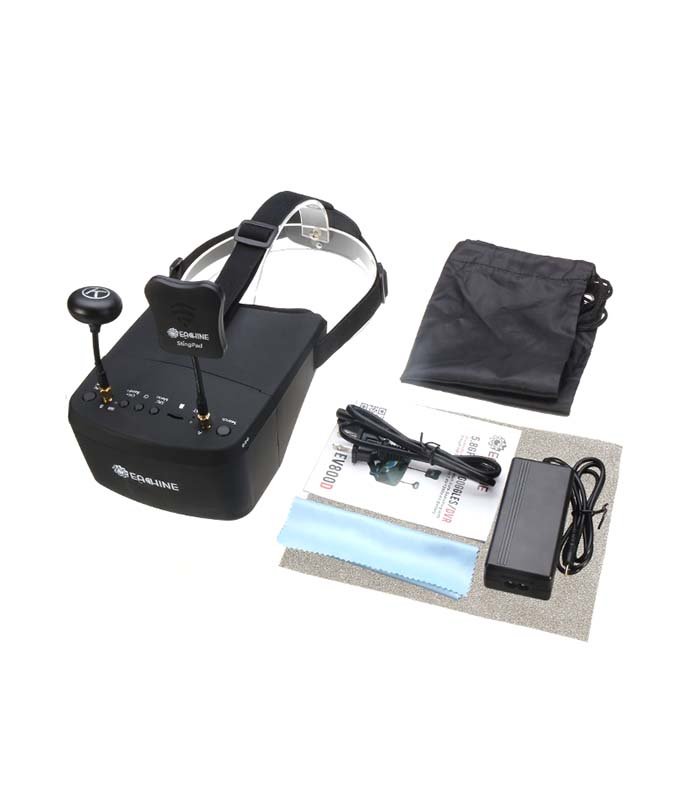

Eachine EV800D 5.8G 40CH Diversity FPV Goggles With DVR
$ 94.83
- Please note: These are Eachine branded EV800D with real diversity EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset Build in HD DVR 7.4V 1200mAh Battery Appearance Dimension: 180*145*82mm Weight: 362g without antenna Belt: three-way adjustable belt Specification Model: drkstore EV800D Built-in DVR Record up to 720*576px full frame rate video, no frame lost (C10 card required) Replay in MENU Require C10 card to record full frame rate Diversity -90dB Super sensitiveness in 2pcs RX5808 PRO modules Great performance when two types (Linear and Omni) antennas are used Display Screen size: 5.0 inch Screen resolution: 800*480(No blur after enlarge by the lens) Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV Ratio : 16:9, 4:3 View Angle: 140/120 degree(Horizontal/Vertical) Lens 3x boost of the video to acquire intense feel-in-there video; 92% transparent rate distort if light; Battery Built-in 7.4V/1200mAh battery; Each battery circle offer around 2hr working time; 10-22V wide range recharging voltage range, typical recharging voltage is 12V Charger : 12V,2A, DC 2.5mm 2S (7.4 V) /3S(11.1V) battery as backup power t to have a long working time. Features of EV800D Built-in with super HD DVR record up to 720*576px resolution Diversity RaceBand 40ch Auto-Searching Two systems (Display/Record duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 super speed card to ensure the full-frame recording) Work-friendly with pilot-OSD, no block on the important flying OSD information; Separable design, the 5-inch screen can be used as small monitor on radio controller or with tripod; HD high brightness 5 inch LCD specially tuned for FPV racing; Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module, with Race Band; Advanced auto-searching function and the working frequency show on screen; Built-in 7.4V 1200mAh battery, each full charge offers 2 hours working time; Wide range re-charge voltage 11-20V; Accept 2S or 3S batteries as a backup power source, to prolong the working time; Nice ergonomic design and fit different faces; Super-wide visible angle up to 82 degrees; 92% transparent lens adopted, no distort, no blur on the edge of the screen; Lightweight 375g with 3.5 hr 2000mAh battery, RTF for any scale racing game; 5 Inch 800*480px HD high brightness LCD Frequencies (5.8GHz, with RaceBand) of Eachin EV800D CH CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8 GROUP A or FR1 5865 MHZ 5845 MHZ 5825 MHZ 5805 MHZ 5785 MHZ 5765 MHZ 5745 MHZ 5725 MHZ B or FR2 5733 MHZ 5752 MHZ 5771 MHZ 5790 MHZ 5809 MHZ 5828 MHZ 5847 MHZ 5866 MHZ C or FR3 5705 MHZ 5685 MHZ 5665 MHZ 5645 MHZ 5885 MHZ 5905 MHZ 5925 MHZ 5945 MHZ D or FR4 5740 MHZ 5760 MHZ 5780 MHZ 5800 MHZ 5820 MHZ 5840 MHZ 5860 MHZ 5880 MHZ R or FR5 5658 MHZ 5695 MHZ 5732 MHZ 5769 MHZ 5806 MHZ 5843 MHZ 5880 MHZ 5917 MHZ Package Included : 1 x drkstore EV800D 40CH 5.8G Diversity Goggles with DVR 1 x Clover Antenna 1 x Panel Antenna 1 x Battery Charger 1 x 3S to DC Power Cable 1 x User Manual 1 x Clean cloth 1 x Bag Get more information on this product at Eachine.
